Waterfog fognail

WATERFOG FOGNAIL TÆKNIUPPLÝSINGAR

Fognails give a superior result in many types of fires. Much faster extinction By using several Fognails this new technique will help firemen get quicker control of the fire. Since you don't have to open doors or windows or make a hole the in the roof. You will not get unwanted oxygen supply, which would increase the intensity of the fire. The extinction will be fast thanks to the atomized fog getting to the hottest part of the fire. The atomized drops make nearly all the water vapourize. The more water that is vapourized - the faster and more effective the extinction. The higher degree of vapourization requires extra caution when it is synchronized with indoor fire-fighting. Improved safety Should the building go up in flames or should there be an explosion, the risk of personal injury will be much lower since you will always have a wall or a roof between you and the fire. Water damages highly reduced When you direct water, into the hottest part of the fire, in the form of atomized water fog you get an almost complete and instant vapourization. Every fog jet uses only 15.5 gallons of water a minute at 6 atm (bar) water pressure. The very fast extinction combined with a low water consumption reduces the water damages to an absolute minimum.

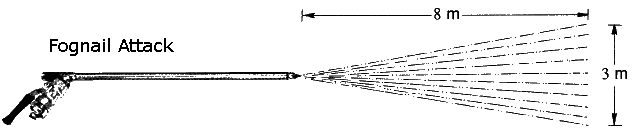

Fognail Attack

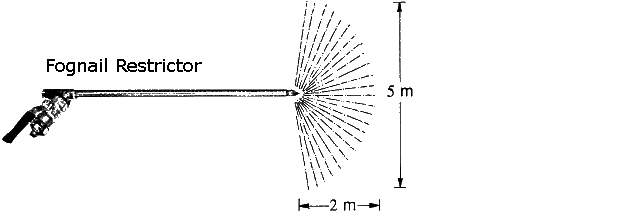

Fognail Restrictor



Technical data for the Fognail
Material:	Connections and regulators in cromium-plated brass, everything else in stainless steel.
Weight:	1.3 kg.
Max. pressure:	20 atm (bar).
Water consumption:	15.5 gallons/min. at 6 bar
