 LTENTSTAL WALTHER COMPONENTS |
| EXPANSION FOAM BRANCHPIPE KR-S2
|
|
Great throw range |
|
Excellent foam quality due to special nozzle |
|
Corrosion resistant |
|
Very compact |
|
| 1. General description |
| The KR S2 branchpipe produces low expansion foam of superior quality. The optimal air inlet nozzle is responsible for the high quality of the foam. The advantage of low expansion compared to medium expansion is the greater throw range and superior cooling effect. By using stainless steel and tough polyurethane optimum protection from corrosion is ensured. |
| 2. Recommended Foam Concentrates |
Protein 3% or 6%
Fluoroprotein 3% or 6%
AFFF 3% or 6%
ARC 3 x 3 or 3 x 6
FFFP 1%, 3% or 6%
Detergents |
| 3. Application |
| Oil industry, Chemical industry Airports, Fire brigades, General industry |
| 4. Operation |
| Connect the branchpipe to the hoseline. Open ball valve to start foam application. It is necessary to flush the branchpipe with clear water after every use. |
| 5. Construction
|

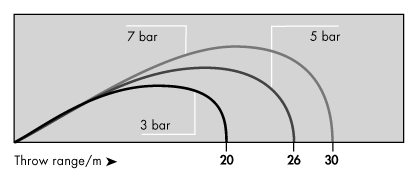

| 6. Throw range
|

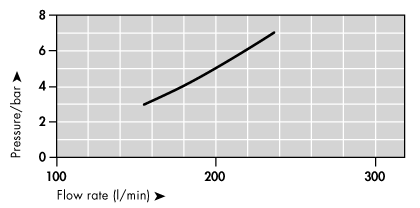

| 7. Flow rate vs pressure
|
| 8. Technical data |
| Operating pressure |
5 bar |
| Water flow |
200 lpm |
| Expansion rate approx. |
15 |
| Throw range approx. |
26 |
| Quantity of foam/ min. approx. |
3 m3 |
| External coupling thread |
1,25" |
| Length |
600 mm |
| Diameter |
50 mm |
| Part-No. |
824.136 |
|
|
|
