Safety is so easy

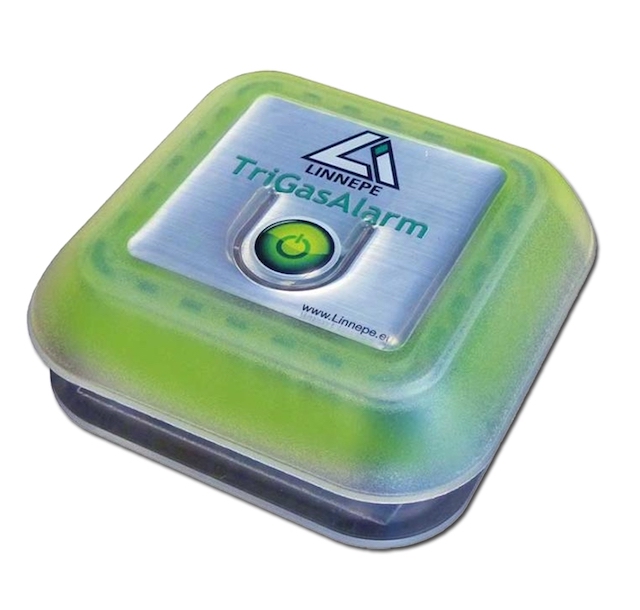

The Linnepe TriGasAlarm is installed with a fixed connection to the 12 V supply of the motorhome - or caravan or boat. It is turned on by lightly pressing the large On button which is in the centre of the face of the housing. It then enters a calibration phase and system check during which the unit pulses with a bright green flashing LED.

The device is ready to detect and alert as soon as the green pulse changes to a constant light. In this operational mode can the brightness of the green LED can be changed to a dimmer level, if desired, by pressing the button once; this is useful at night.

If a harmful gas concentration is detected, the face of the unit pulses with a bright red light and the internal loud siren will sound.

Advanced functions

The advanced TriGasAlarm controls the functions of the sensor and each time it is switched on it calibrates automatically to ambient air conditions and temperature. The smart electronics will check the calibrations every 40 seconds and adjust them if necessary. The TriGasAlarm has an automatic temperature control and compensates for differences so that the detection of dangerous gases is reliable even at temperatures above 25 degrees C.

The operating states can be understood from the color of the housing:

Green (flashing) = calibration phase

Green (permanently) = OK

Red (continuous) = alarm with continuous

Alarm sound (loud: 80 dB)

Dimensions: Face 85mm x 85mm; depth 32mm

Alarm sound (loud: 80 dB)

Easy to retrofit

The Linnepe TriGasAlarm can be easily retrofitted in a motorhome or caravan.

The device should be fitted at a central location in the lower area of ??the vehicle. The TriGasAlarm only needs a connection to the 12v power supply of the on-board leisure battery.

Due to the low power consumption of only 95 mA once in stand-by, the TriGasAlarm can stay switched on during sleep times without any problems. In the off mode, the power supply is negligible.
